DEMO - Turntable Cabinet Parts Washer TYPHOON®-PCE
The PROCECO TYPHOON®-PCE parts washer is designed for aqueous cleaning and degreasing of small- to medium-size workpieces. Larger parts are placed directly on the cabinet-mounted turntable, while small parts are batch-loaded into baskets to be processed. This front-loading industrial parts washer combines pressure, heat, and an aqueous cleaning solution to clean and degrease your parts in minutes.
PROCECO TYPHOON®-PCE parts washers also feature a large-volume solution tank, which reduces the likelihood of foaming by reducing agitation through pumping action, and also helps to settle contamination. The PROCECO TYPHOON®-PCE requires limited floor space and is ideally suited to lean manufacturing cells or maintenance and repair centers.
The PCE includes ergonomic design features such as an optimal loading height, which provides the ideal height for ergonomic parts handling, and reduced need for reaching, therefore allowing the operator to stand closer to the washer during loading-unloading operations, and an easy-to-access turntable, which keeps workload within easy reach.
- The compact footprint allows installation anywhere in your facility
- Ergonomic design for improved productivity and operator comfort
- Zero-discharge, eco-friendly cleaning process
- Optimal loading height
- Easy access to the turntable
- Large swing-out cabinet door mounted on pivot points
- The C-shaped spray manifold sprays from the top, side, and bottom of the rotating table, reaching all part surfaces
- Vertical process pump with submerged wet end; easily removable without draining the tank, saving hours of maintenance work
- Recessed tank design allows the operator to be positioned closer to the washer during operation, improving work posture
Model: PCE 28X36-E-500-1
- Year of construction: 2023
- Turntable diameter: 28’’
- Work height: 36’’
- Load capacity: 500 lbs.
- Machine dimensions: 42”W × 53”L × 77”H
- Max. solution operating temperature: 140°F (60°C) max.
- Pump motor: 3HP
- Pump capacity: 60 USgal/min @ 40 psi
- Wash stage solution tank capacity: 136 USgal
- Wash tank capacity: 90 USgal
- Wash stage heating capacity: 9 kW
- Required power supply: 460V /3-Phase/60Hz
- Bag filter
- Belt oil skimmer
Model: PCE 36x42-E-1000-1-SS- Year of construction: 2014
- Turntable diameter: 36’’
- Work height: 42’’
- Load capacity: 1000 lbs.
- Machine dimensions: 56”W × 68”L × 84”H
- Max. solution operating temperature: 140°F
- Pump motor: 5HP
- Pump capacity: 100 USgal/min @ 50 psi
- Wash stage solution tank capacity: 136 USgal
- Wash stage heating capacity: 18 kW
- Required power supply: 460 V / 3Ph / 60 Hz
- Bag filter
- Belt skimmer
Model: PCE 42X42-E-1000-1
- Year of construction: 2023
- Turntable diameter: 42’’
- Work height: 42’’
- Load capacity: 1000 lbs.
- Machine dimensions: 56”W × 68”L × 84”H
- Max. solution operating temperature: 140°F (60°C) max.
- Pump motor: 7.5HP
- Pump capacity: 140 USgal/min @ 60 psi
- Wash tank capacity: 165 USgal
- Wash stage heating capacity: 18 kW
- Required power supply: 460V /3-Phase/60Hz
- Bag filter
- Belt oil skimmer
Model: PCE 42X60-E-1000-1
- Year of construction: 2023
- Turntable diameter: 42’’
- Work height: 60’’
- Load capacity: 1000 lbs.
- Machine dimensions: 56”W × 68”L × 84”H
- Max. solution operating temperature: 140°F (60°C) max.
- Pump motor: 7.5HP
- Pump capacity: 140 USgal/min @ 60 psi
- Wash tank capacity: 165 USgal
- Wash stage heating capacity: 18 kW
- Required power supply: 460V /3-Phase/60Hz
- Bag filter
- Belt oil skimmer

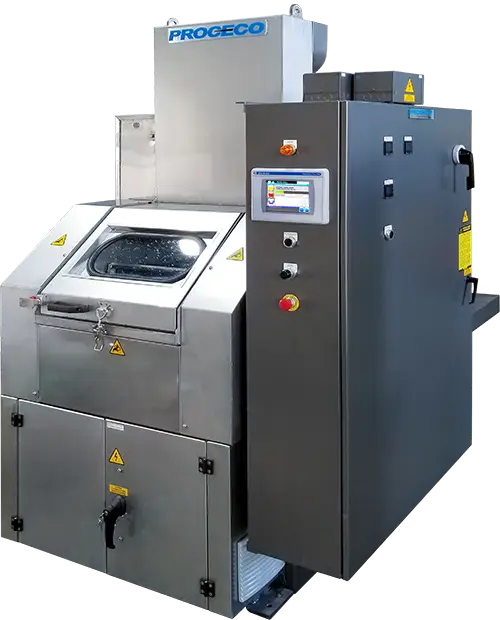

Spray-Immersion Cabinet Parts Washer
TYPHOON-SI®
The TYPHOON®-SI is a compact, ergonomically-designed parts washer, ideal for precision cleaning of machined components. The TYPHOON®-SI parts washer installs easily and conveniently into a manufacturing cell and can handle a wide variety of complex, small- or medium-size parts using standard Kaydon baskets or custom-engineered PROCECO holding fixtures.
The TYPHOON®-SI parts washer features fully recirculated, aqueous immersion wash and rinse stages. At the beginning of every wet-process stage, V-jet spray nozzles power spray the rotating basket fixture while also filling the immersion tank. Basket rotation during immersion and power-spraying ensures precision cleaning and complete removal of contamination. Following all wet-process stages, the nozzles power spray the parts without immersion, thereby ensuring that the part surfaces are not re-contaminated.
KEY BENEFITS
- Ideal for tough-to-clean parts with complex geometries and intricate bores
- Fully recirculating process: each stage includes a dedicated tank and process pump
- High turbulation created by power spray and immersion
- Compact / ergonomic design with all services at the rear of the machine
- Multiple programs for different parts and cleaning processes
- PLC controlled
